Herkunftsort: | China |
---|---|
Markenname: | Runpaq |
Zertifizierung: | NONE |
Modellnummer: | K33 |
Min Bestellmenge: | 1000 Stück |
Verpackung Informationen: | Karton |
Lieferzeit: | 15-21 Tage |
Zahlungsbedingungen: | T/T, L/C, D/A, D/P, Western Union |
Versorgungsmaterial-Fähigkeit: | 200000 Sätze/Monat |
Normalspannung: | Lithium-Batterie 2.5-5VDC | Anwendung: | offenes/nahes Heizungsventil |
---|---|---|---|
Leerfahrtstrom: | <40 mA=""> | Gegenwärtig am vollen Laden: | ungefähr 650 MA |
Motor: | Motor DC2.5V #300 | Drehmoment: | |
Offene/nahe Zeit: | < 10="" S=""> | Reduzierungsverhältnis: | 2000: 1 (für DN15 - 25 Kugelventil); |
Schutz: | Modell: | K33 |

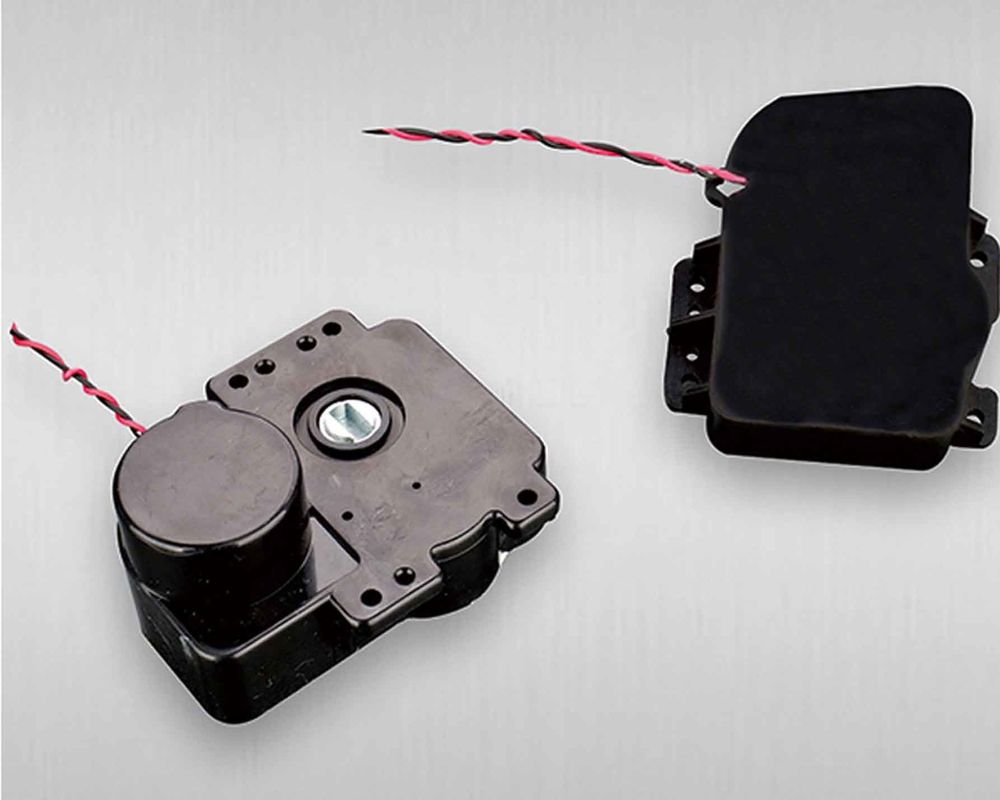

2NM dC2.5V actuator motor, 3 way mini motorized ball valve
Product description
The brass ball valve need be driven to be open or close, or an open angle by a DC motor actuator. Our DC synchronized gear actuator motors are available with DC2.5V-5V lithium powered, torque: 1NM - 9 NM at different velocity reduction ratio. The robust structure, ensures extremely long service life cycles more than 20,000 times, also different protection level. You'll get a wide selection of spare parts for your products in the application on HVAC, automation, IOT smart city, zone control valve, heating valve, AMR water meter, etc. A mini motorized ball valve, can be 2 way or 3 way full port, which are used for the flow control, zone valve, heating valve control, smart water meter open / close.
Technical data-Model K33
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <40 mA @ 3.6V, 23ºC
3. Current with max loading: <650 mA (motor #300)
4. Torque: >2 NM (2000:1)
5. Open/close time: <10 S (2000:1)
6. Velocity reduction ratio: for DN15, DN20, DN25 ball valve (2000:1)
7. Protection: IP67
Wiring definition
No | Color of wire | Definition |
1 | blue | on position signal, valve open |
2 | white | on position signal, public |
3 | yellow | on position signal, valve close |
4 | black | positive (+) |
5 | red | negative (-) |
